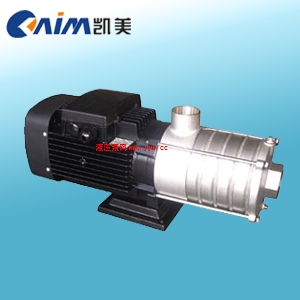

CHLF,CHLF（T）轻型段式多级离心泵主要用于家庭型中央空调循环及工业上液体的传输。如脱矿物质水、软水、净化系统、轻油等的循环和增压。
|
型号
|
扬程(m)
|
流量(m3/h)
|
电机功率(KW)
|
转速(r/min)
|
|
CHL2-20
|
14
|
2
|
0.37
|
2900
|
|
CHL2-30
|
21
|
2
|
0.55
|
2900
|
|
CHL2-40
|
28
|
2
|
0.55
|
2900
|
|
CHL2-50
|
35
|
2
|
0.55
|
2900
|
|
CHL2-60
|
42
|
2
|
0.75
|
2900
|
|
CHL4-20
|
15
|
4
|
0.55
|
2900
|
|
CHL4-30
|
22
|
4
|
0.75
|
2900
|
|
CHL4-40
|
30
|
4
|
0.75
|
2900
|
|
CHL8-10
|
8.5
|
8
|
0.75
|
2900
|
|
CHL8-20
|
17
|
8
|
0.75
|
2900
|
|
CHL8-30
|
25.5
|
8
|
1.1
|
2900
|
|
CHL8-40
|
34
|
8
|
1.5
|
2900
|
|
CHL8-50
|
42.5
|
8
|
2.2
|
2900
|
|
CHL12-10
|
9.5
|
12
|
0.75
|
2900
|
|
CHL12-20
|
19.5
|
12
|
1.2
|
2900
|
|
CHL12-30
|
29.5
|
12
|
1.8
|
2900
|
|
CHL12-40
|
39.5
|
12
|
2.4
|
2900
|
|
CHL12-50
|
50
|
12
|
3
|
2900
|
|
CHL16-10
|
10
|
16
|
1.1
|
2900
|
|
CHL16-20
|
21
|
16
|
2.2
|
2900
|
|
CHL16-30
|
32
|
16
|
3
|
2900
|
|
CHL20-10
|
9.5
|
20
|
1.1
|
2900
|
|
CHL20-20
|
21
|
20
|
2.2
|
2900
|
|
CHL20-30
|
33
|
20
|
4
|
2900
|
|
CHLF(T)2-20
|
14
|
2
|
0.37
|
2900
|
|
CHLF(T)2-30
|
21
|
2
|
0.55
|
2900
|
|
CHLF(T)2-40
|
28
|
2
|
0.55
|
2900
|
|
CHLF(T)2-50
|
35
|
2
|
0.55
|
2900
|
|
CHLF(T)2-60
|
42
|
2
|
0.75
|
2900
|
|
CHLF(T)4-20
|
15
|
4
|
0.55
|
2900
|
|
CHLF(T)4-30
|
22
|
4
|
0.55
|
2900
|
|
CHLF(T)4-40
|
30
|
4
|
0.75
|
2900
|
|
CHLF(T)4-50
|
38
|
4
|
1.1
|
2900
|
|
CHLF(T)4-60
|
45
|
4
|
1.1
|
2900
|
|
CHLF(T)8-10
|
8.5
|
8
|
0.75
|
2900
|
|
CHLF(T)8-20
|
17
|
8
|
0.75
|
2900
|
|
CHLF(T)8-30
|
25.5
|
8
|
1.1
|
2900
|
|
CHLF(T)8-40
|
34
|
8
|
1.5
|
2900
|
|
CHLF(T)8-50
|
42.5
|
8
|
2.2
|
2900
|
|
CHLF(T)12-10
|
9.5
|
12
|
0.75
|
2900
|
|
CHLF(T)12-20
|
19.5
|
12
|
1.2
|
2900
|
|
CHLF(T)12-30
|
29.5
|
12
|
1.8
|
2900
|
|
CHLF(T)12-40
|
39.5
|
12
|
2.4
|
2900
|
|
CHLF(T)12-50
|
50
|
12
|
3
|
2900
|
|
CHLF(T)16-10
|
10
|
16
|
1.1
|
2900
|
|
CHLF(T)16-20
|
21
|
16
|
2.2
|
2900
|
|
CHLF(T)16-30
|
32
|
16
|
3
|
2900
|
|
CHLF(T)16-40
|
43
|
16
|
4
|
2900
|
|
CHLF(T)20-10
|
9.5
|
20
|
1.1
|
2900
|
|
CHLF(T)20-20
|
21
|
20
|
2.2
|
2900
|
|
CHLF(T)20-30
|
33
|
20
|
4
|
2900
|
|
CHLF(T)20-40
|
44.5
|
20
|
4.4
|
2900
|
|
序号／No．
|
名称／Name
|
材料／Material
|
|
2
|
堵头／Gag
|
不锈钢／Stainless steel
|
|
3
|
轴承/Bearing
|
碳化钨／Tungsten carbide
|
|
4
|
叶轮／Impeller
|
不锈钢／Stainless steel
|
|
5
|
轴／Shaft
|
不锈钢／Stainless steel
|
|
6
|
出水导叶/Water-out guide vane
|
不锈钢／Stainless steel
|
|
8
|
机械密封／Mechanical seal
|
|
|
9
|
电机端盖／Motor end cover
|
铝合金／Aluminum alloy
|
|
10
|
底座／Base frame
|
铸铁／Cast iron
|
|
11
|
拉杆／Pull-rod
|
不锈钢／Stainless steel
|
|
12
|
导叶／Guide vane
|
不锈钢／Stainless steel
|
|
13
|
支撑导叶／Support guide vane
|
不锈钢／Stainless steel
|
|
14
|
叶轮隔套/Impeller separating sleeve
|
不锈钢／Stainless steel
|
|
|
CHLF
|
|
|
1
|
进水体／Water-in body
|
不锈钢／Stainless steel
|
|
7
|
出水体／Water-out body
|
不锈钢／Stainless steel
|
|
|
CHLF（T）
|
|
|
1
|
进水体／Water-in body
|
铸铁／Cast iron
|
|
7
|
出水体／Water-out body
|
铸铁／Cast iron
|
